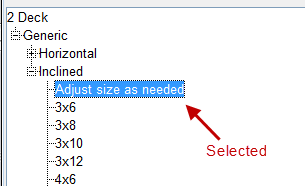

Adjust Size as Needed
Has been selected

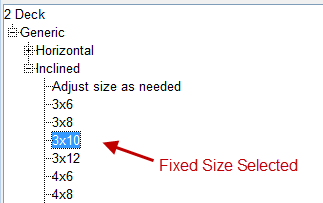

Fixed Size
Has been selected
Using Calculated Efficiency
- Increases or decreases the screen size as needed to achieve the maximum deck efficiency.
- After reaching maximum screen size, it continues to lower deck efficiency.
- Red flags appear if deck efficiency lowers to 70% and there is still not enough available area.
- Raises or lowers deck efficiency as needed to match the fixed screen size.
- Red flags appear if deck efficiency lowers to 70% and there is still not enough available area.
Using Fixed Efficiency
- Increases or decreases the screen size as needed to achieve the fixed deck efficiency.
- Red flags appear if a screen size cannot be found that will meet the specified deck efficiencies.
- Will not alter screen size or deck efficiencies.
- Red flags appear if there is not enough area to achieve the specified deck efficiency.
