Blending Station Installation

Use Blending to calculate the optimal mix of different source products and make a specified product. This feature is designed to be as flexible as possible and allow use of multiple sources for the end product. There are three simple steps to blending: First define the number of material sources; next open the Blending Station and define the product to be made; finally open the Blending Calculator to perform or modify the calculation for that product.

To Install the Blending Station

1. Select the End Product category.
2. Select the Blending Station and place it on the worksheet (it will turn blue).
3. Right-click and select Adjust Setup from the short-cut menu.
4. Set the number of blending sources. 5 is the default number (2 minimum, 22 maximum).

5. Track Power and Emission attributes as necessary.

   Hover Over Image to Enlarge



6. Once the number of product sources is determined, right-click the Blending Station icon and select Manage Blended Products to open it.

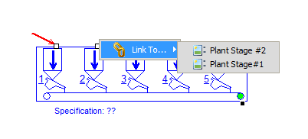

7. Blenders can be linked to previous stages. To link the blender to a previous stage, right click with the pointer on the connection input to link, and select "Link To."



8. Blenders can be linked to previous stages. To link the blender to a previous stage, right click with the pointer on the connection input to link, and select "Link To."

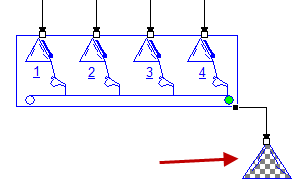

End Products resulting from blending operations are always indicated with a checkerboard pattern as shown here:

To use a product blending station see Blending Products

Hover Over Image to Enlarge

Refer to the Blending Products section for more information.
